PLEASE READ ALL DETAILS BEFORE ORDERING

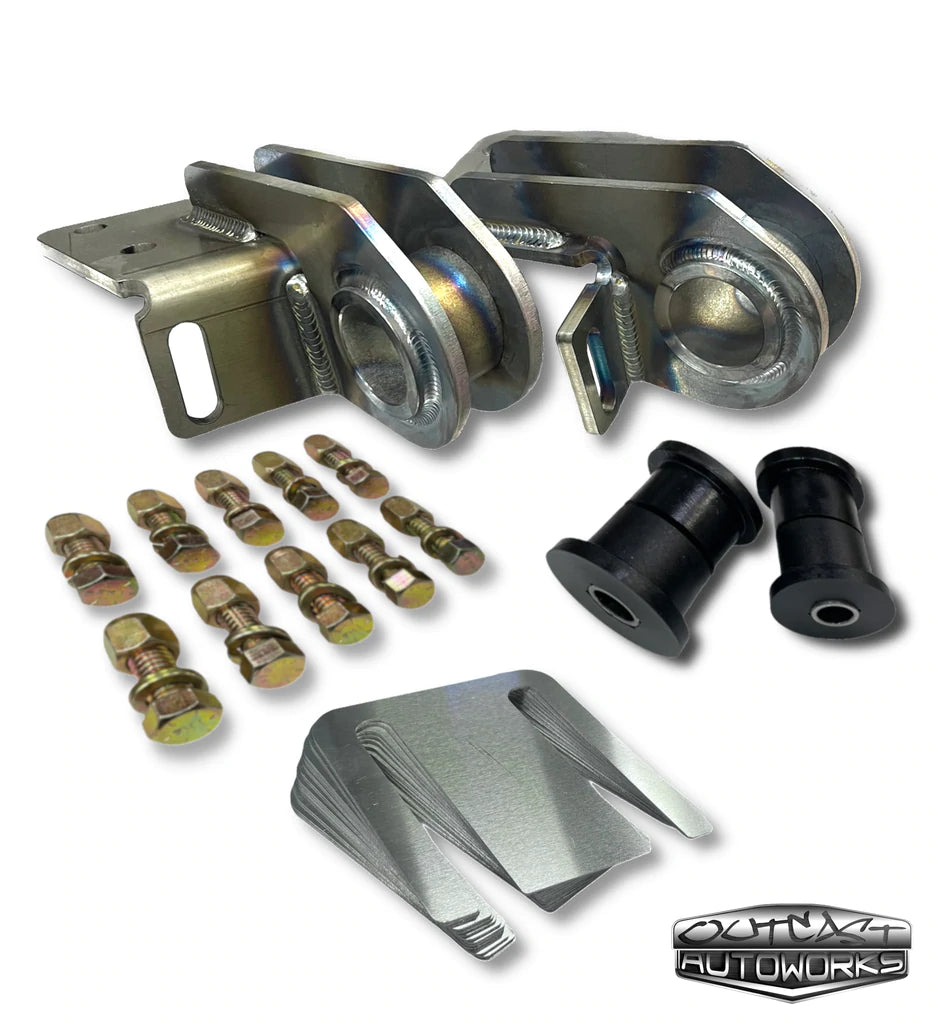

The Outcast AutoWorks Ford F-100 / F-Series Crown Vic swap bolt on lower control arm mounts save time, fab work and provide an accurate mounting location for your lower control arms on your swap! Say goodbye to cutting apart and welding factory bushings or brackets and have confidence installing an easily serviceable and adjustable part. Included grade 8 hardware mounting through side and bottom of frame ensure that these parts can withstand any type of abuse. Proper hardness polyurethane bushings provide long life, comfort and better than OEM bushing performance. ZERO welding is required to install and are proudly built right here in the USA out of American steel.
Current estimated build/ship time is 4 weeks from purchase date.
Fitment & Specs:
- Fits 2003-2011 Crown Victoria Front Suspension fit into the 1980-1996 Ford F-Series Frames
- **Can be used with all factory large and small stud control arms**
- Full bolt on design, simply slide these mounts onto your CV lower control arms after you have mounted the cross member, drill a few 1/2" holes and bolt on.
- Rigid Construction using all 1/4" water jet cut steel
- Precision Mig & Tig welded
- All necessary hardware, bushings & alignment shim pack included
Notes:
These items are sold in bare steel finish with all necessary bushings, bolt sleeves and hardware to mount to frame. You will need to re-use the factory lower control arm and nut.
How will I adjust my caster with these mounts?
These brackets were designed with optimal alignment adjustment in mind. Unlike the factory lower control arm bushings which were slotted for adjustment and very limited, the Outcast mounts use a standard straight through polyurethane bushing. To adjust caster, alignment shims are installed between the bracket and frame very similar to many aftermarket upper control arms. This kit takes all the guess work out of your install and provides all the proper mounting for an easy and accurate front end alignment.
Lifetime Warranty:
All Outcast AutoWorks built products are backed by a lifetime warranty including brackets, hardware and bushings! If our parts don't last forever, we want to know about it!
Guaranteed Fit policy:
Buy with confidence! Here at Outcast, we take pride in our products and realize every project is unique. We want to offer parts that exceed expectations and above all, fit. When you purchase from us, we are committed to providing parts that fit YOUR project. We wont stop until you are 100% satisfied. If changes or part exchanges need to be made, we've got you covered.
Returns are accepted as long as the item has NOT been powder coated, cut or re-welded.
